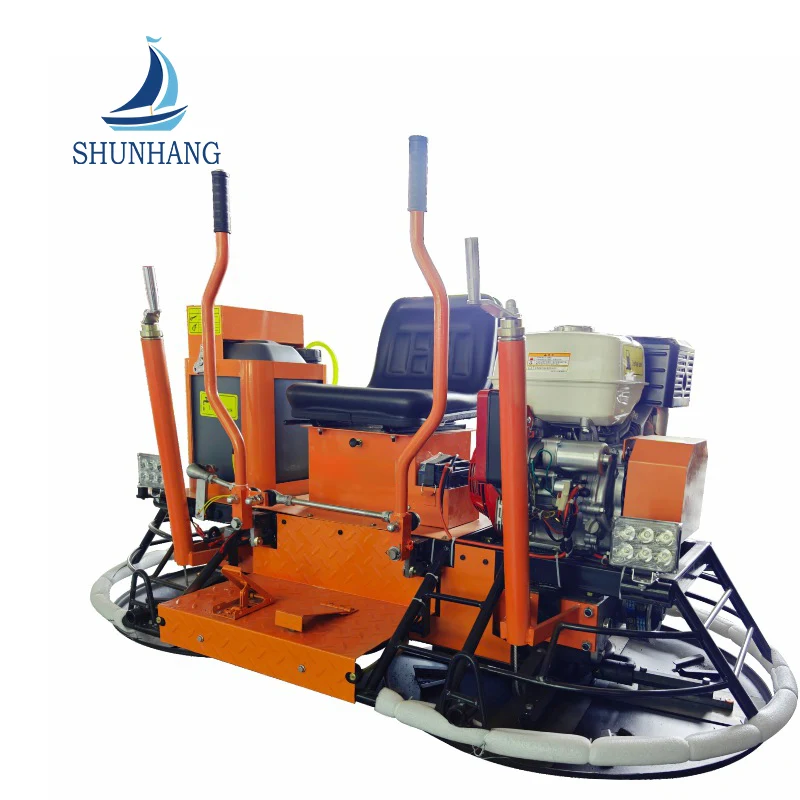

Horizontal Ride-On Power Trowel Machine

My Factory ShunHang machine manufacturer Specialized Horizontal Ride-On Power Trowel Machine. The pan size of this Horizontal Ride-On Power Trowel Machine is 800MM. Today We are a reliable Power Trowel supplier in China rely on good quality and Competitive price. Hope to long-term cooperation with you . Every accessory goes through layers of inspection

Feature

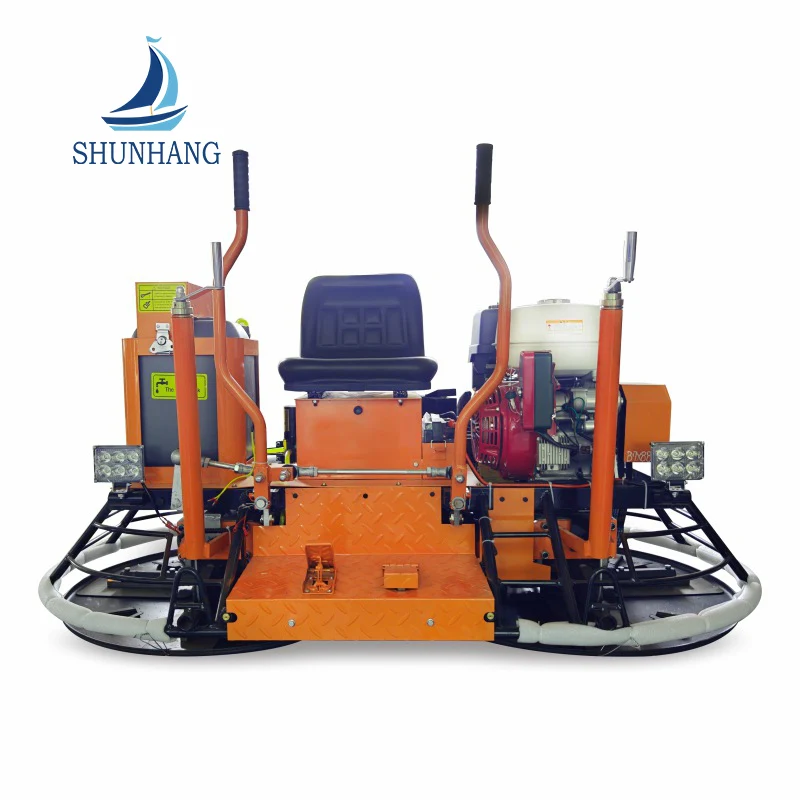

Horizontal Ride-On Power Trowel Machine is double pan pulping compaction, low center of gravity stable operation, equipped with sprinklers, lighting facilities and safety switch, suitable for large area concrete floor construction. The pulping and compaction are completed simultaneously, and the efficiency of Horizontal Ride-On Power Trowel Machine is equivalent to 10 hand-held polishing machines, especially suitable for large-scale floors such as factory buildings and warehouses.


Production Application:

Horizontal Ride-On Power Trowel Machine is widely used for concrete surface treatment in high standard factories, warehouses, parking lots, squares, airports, and frame buildings.Horizontal Ride-On Power Trowel Machine can improve construction efficiency, make the surface smoother, enhance the compactness and wear resistance of the concrete surface


Production Parameter:

Factory Model

SH800-LS-Gasoline

Engine Type

Honda GX390

Blade quantity

8pcs

Pan size

800MM

Pan speed

70-150RPM

Water tank

10L

Fuel tank

10L

Dimension

1700*850*1250MM

Packing size

1800*1000*1350MM

N.W.

260KG

Starting method

Electric start

Quick-wear parts

Blade, pan, V-belt

Work efficiency

350m²/hours

Production Capacity

5000SET/Month

Origin

China

Certification

ISO9001: 2000, CE

Working Width

1530MM

Transport Package

Wooden box

Delivery time

10-20days


Production feature

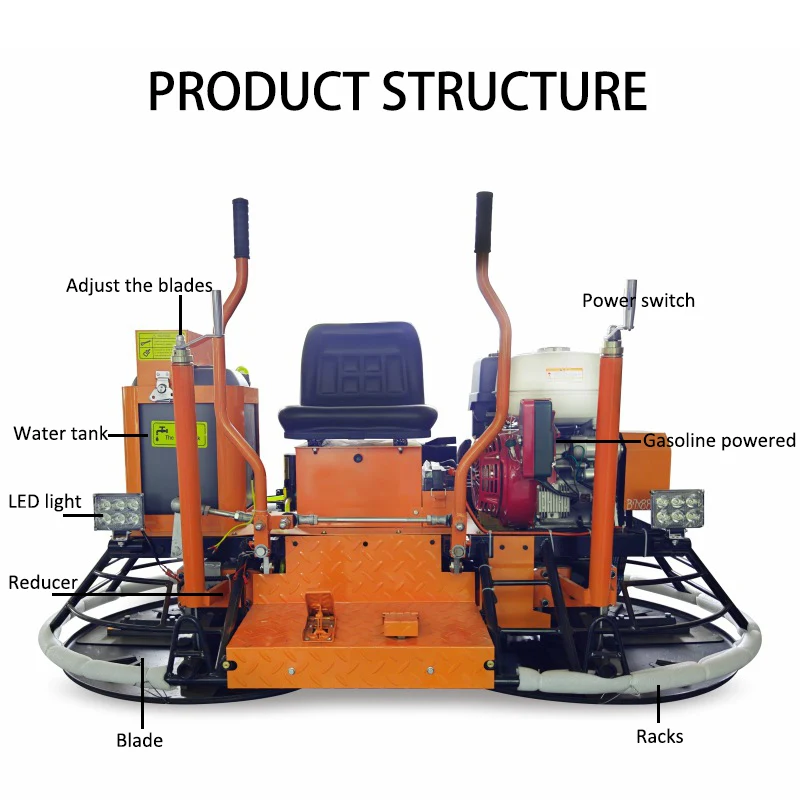

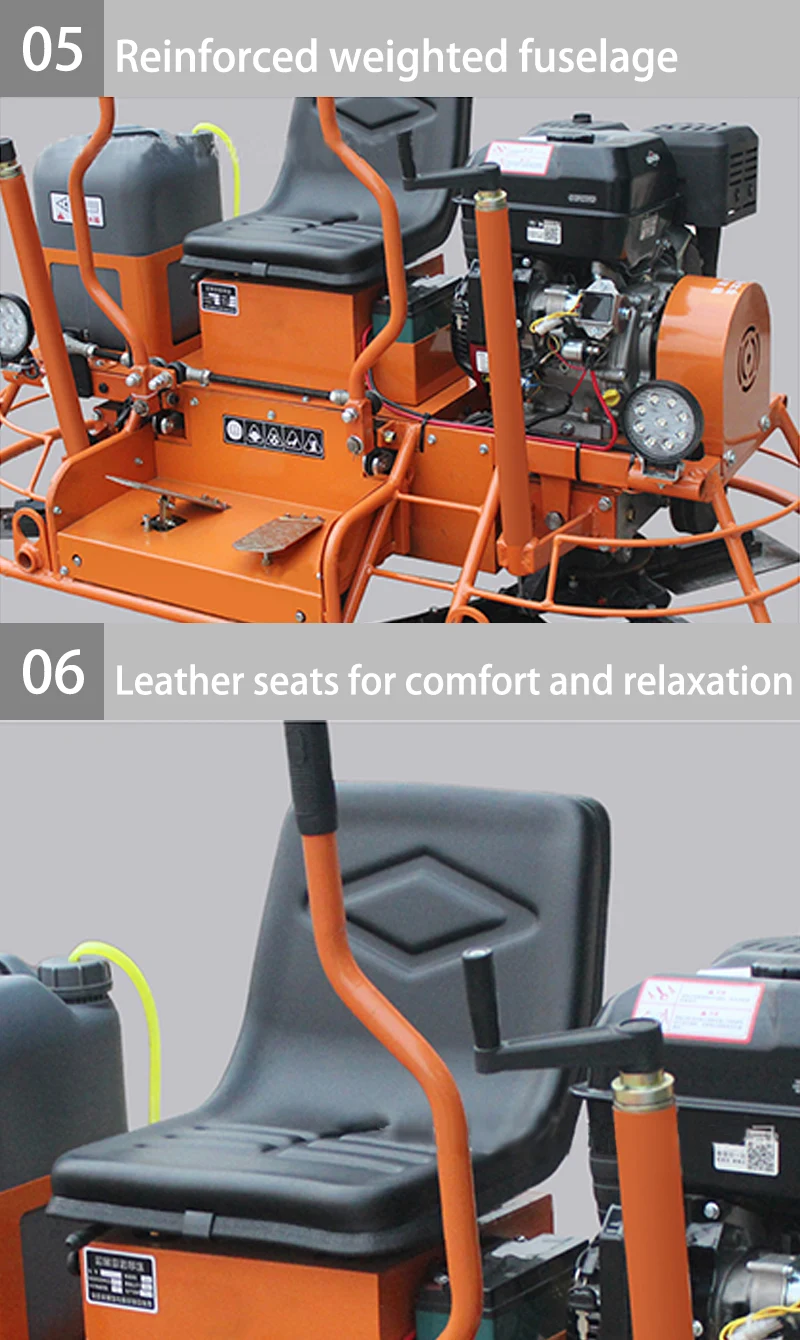

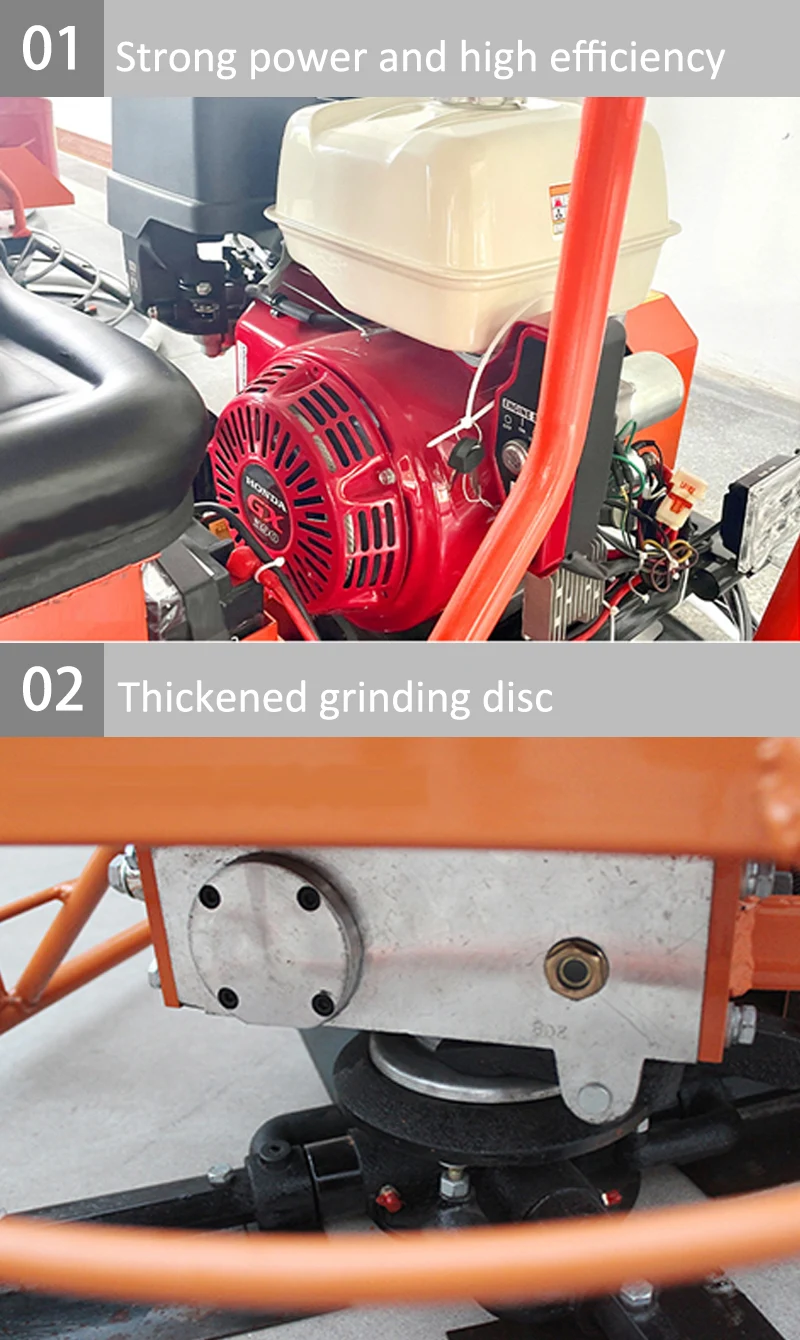

Horizontal Ride-On Power Trowel Machine reduces the labor intensity of workers and improves work efficiency. The ride-on trowel has the characteristics of double discs, heavy body, better ground compaction effect, and fast slurry extraction; mechanical steering operation system, sensitive response, easy operation; equipped with electric start engine, providing strong and reliable power, stable operation; unique safety handle enables the operator to control safely and operate freely; adjustable handle makes the operator feel comfortable and reduces fatigue.


Power Trowel Factory SERIVCE

As experienced Power Trowel manufacturer, We are very supportive to sample OEM.So,welcome to contact with our factory. We believe we are your best supplier.


Horizontal and Vertical Comparison

Comparison item

HorizontalPower Trowel

Vertical Power Trowel

Application scenario

Super flat floor, precision plant, narrow area

Large square, airport, ordinary floor

Wiping efficiency

Single pan/horizontal doublepan

Doublepan vertical operation

Flexibility

Steering is flexible and suitable for complex terrain

Straight line work\  suitable for open fields
