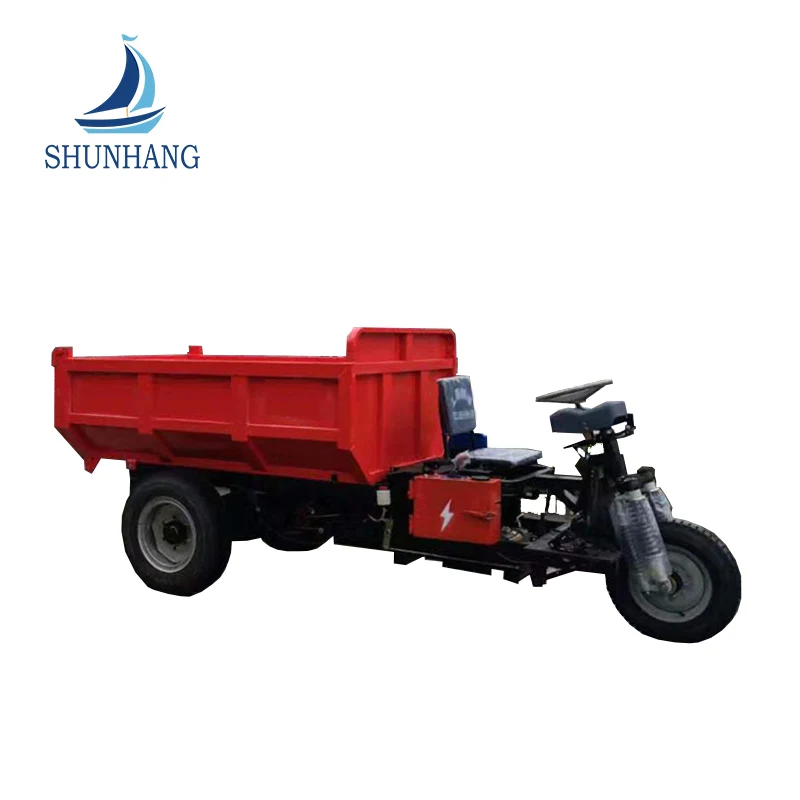

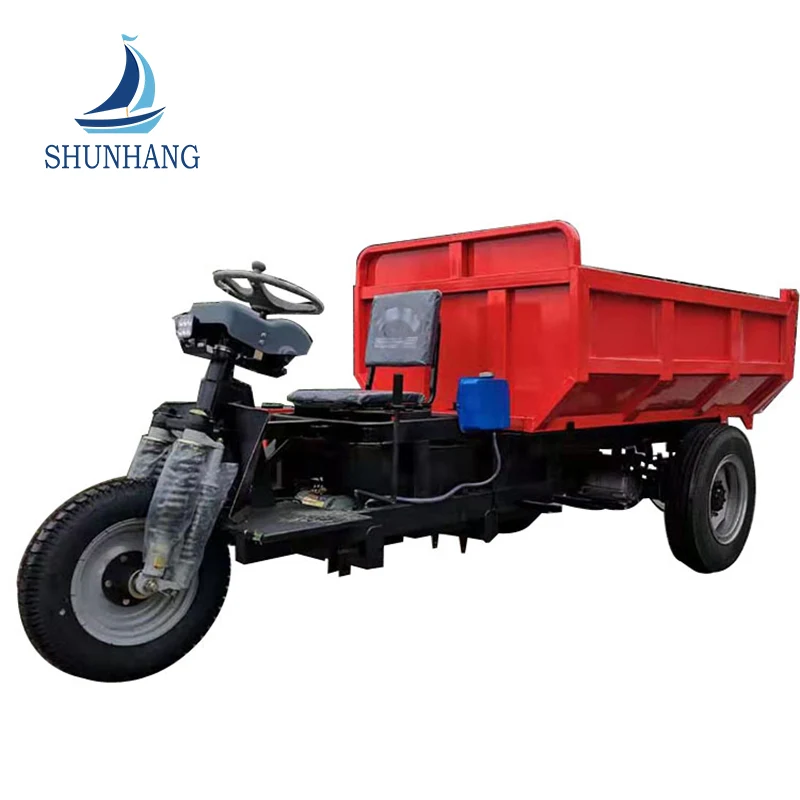

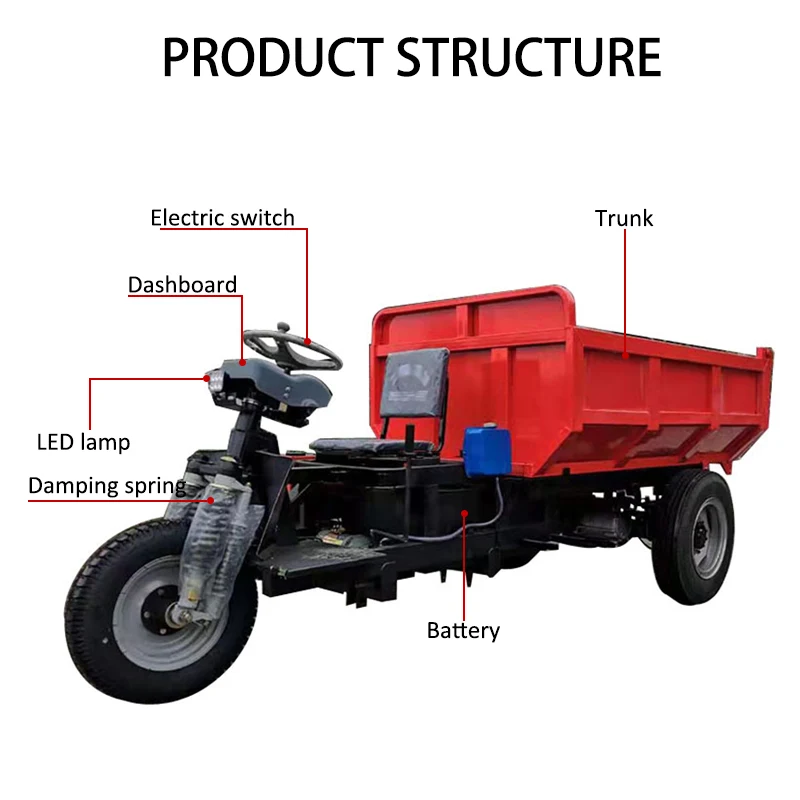

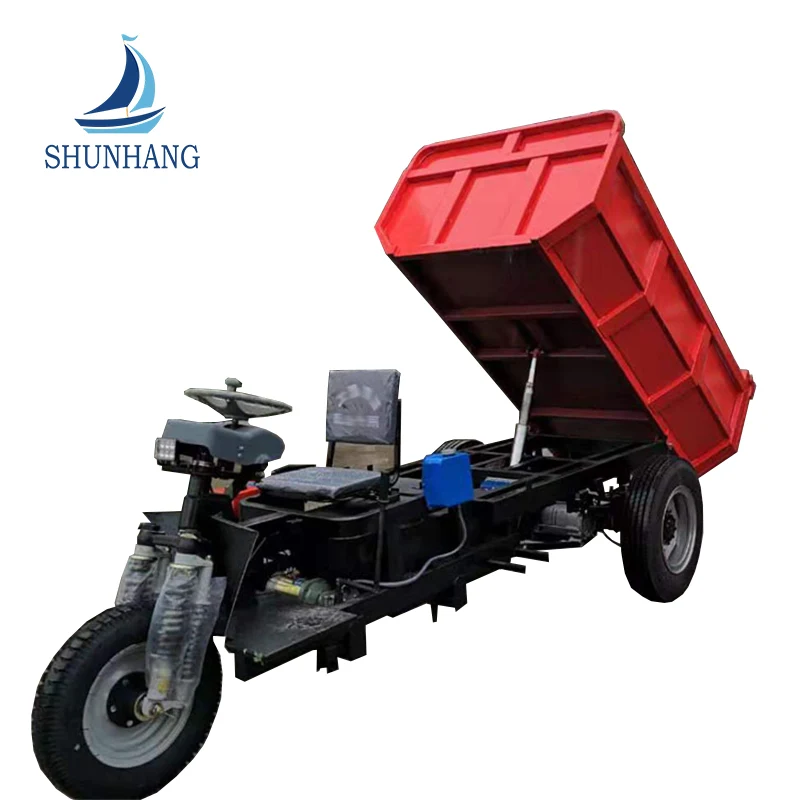

As a durable Load Bearing 5 Tons 96v Battery Engineering Tricycle, the vehicle body structure has been reinforced. It adopts high-carbon steel or alloy steel welding, which significantly enhances its rigidity and ensures safety. It is more suitable for heavy-load transportation of ores and sandstones. The front single-wheel steering and rear dual-wheel drive improve stability and flexibility. The lowering of the cargo board bottom box can prevent rollovers. The increase in battery capacity can extend the usage duration. This 5-ton engineering three-wheeler with a 96V battery has advantages such as heavy load capacity, strong adaptability, and economic durability. It is suitable for various short-distance material transportation needs. Different configurations can be selected according to actual working conditions to improve operational efficiency.
The quality Load Bearing 5 Tons 96v Battery Engineering Tricycle is suitable for use in mining areas and construction sites. It is ingeniously designed, with excellent performance and comfortable riding and driving. It can be used for transporting and loading bulk materials in brick kilns, flour mills, chemical plants, construction sites, etc.; for transporting in communities, streets, sanitation, tunnel projects, etc.; and for transporting coal, coal slag, cinder, kiln slag, road cleaning, etc. The quality Load Bearing 5 Tons 96v Battery Engineering Tricycle is an ideal and energy-saving transportation tool.
|
Self-weight |
2220kg |
|
|
External dimensions |
4.10m*1.60m*1.68m |
L*W*H |
|
Cargo box size |
2.40m*1.60m*700 |
L*W*H |
|
Maximum load capacity |
7000kg |
|
|
The workbench is high above the ground |
1580mm |
|
|
Wheelbase |
2350mm |
|
|
Minimum height from the ground |
280mm |
|
|
Track length |
1600mm |
|
|
Lead-acid maintenance-free battery |
6v200ah- 16 yuan (Wan Yang brand) |
96v |
|
Ac brushless motor |
96V15000W |
3000R |
|
Motor controller |
96V15000W |
Waterproof type |
|
Rear axle |
10t bear |
|
|

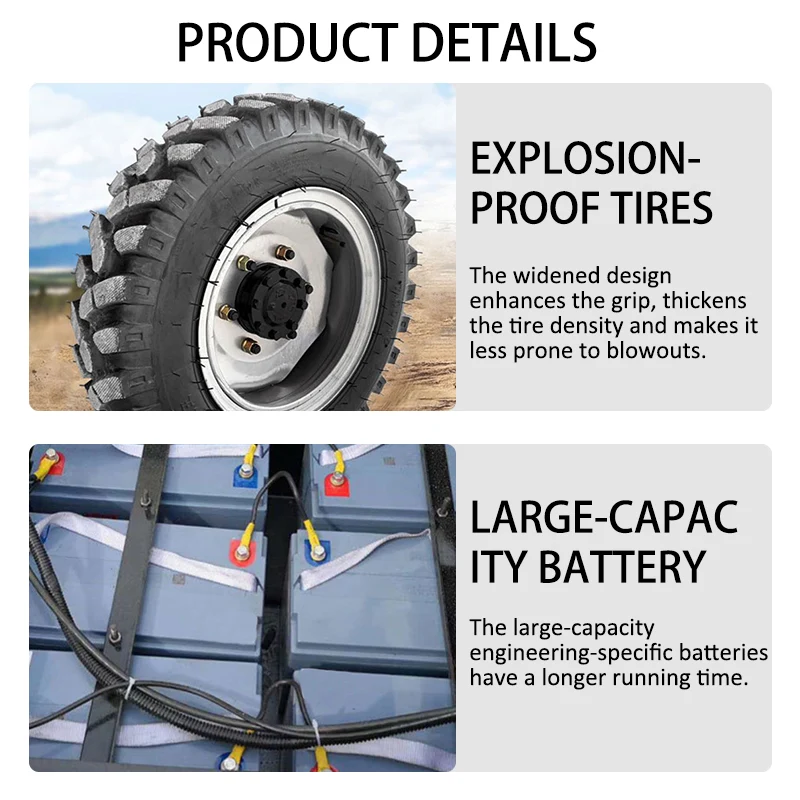

Rear tire |
825-16 |
Grade 20 engineering tires |
|
Front tire |
600-14 |
|
|
Braking mode |
Air-stopping brake |
|
|
Transmission mode |
Direct connection of the motor |
|
|

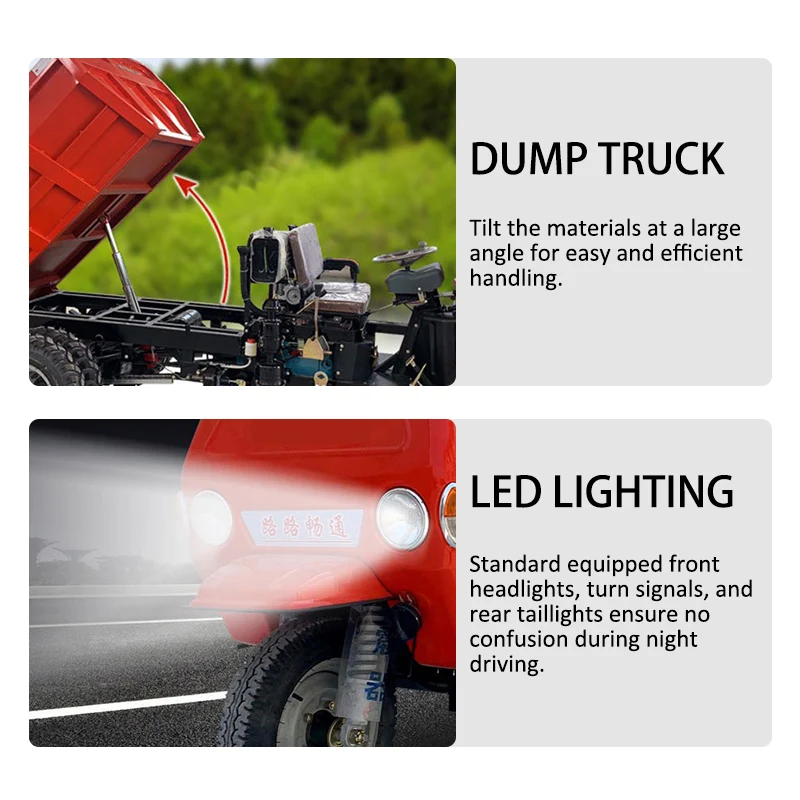

Lifting device |
ZLC type DC series-excited motor DYZ-E6 hydraulic power unit Hydraulic cylinder ø80 |
|
|
Shock absorption system |
11 reinforced leaf springs |
|
|
Slope of ascent |
≤15° |
|
|
Speed regulation mode |
Waterproof accelerator |
electrodeless |
|
Directional device |
Disc type steering gear |
|
|
Front baffle of the body panel |
100 |
|
|
Charging method |
Intelligent charger for vehicle temperature control |
|

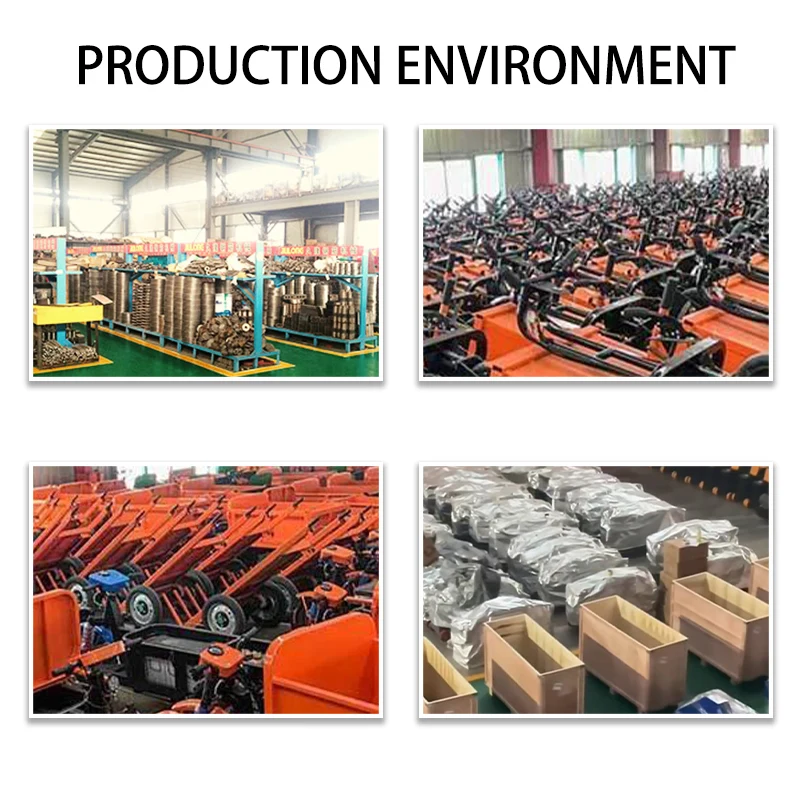

As a Load Bearing 5 Tons 96v Battery Engineering Tricycle suppliers, we offer technical consulting services for the product, equipment installation guidance, and accessory support. Our production workshop is equipped with professional automated production equipment, effectively ensuring efficiency and the reliability of production quality. While promoting the application of green engineering, we are also continuously improving the battery performance and vehicle quality to serve customers.
